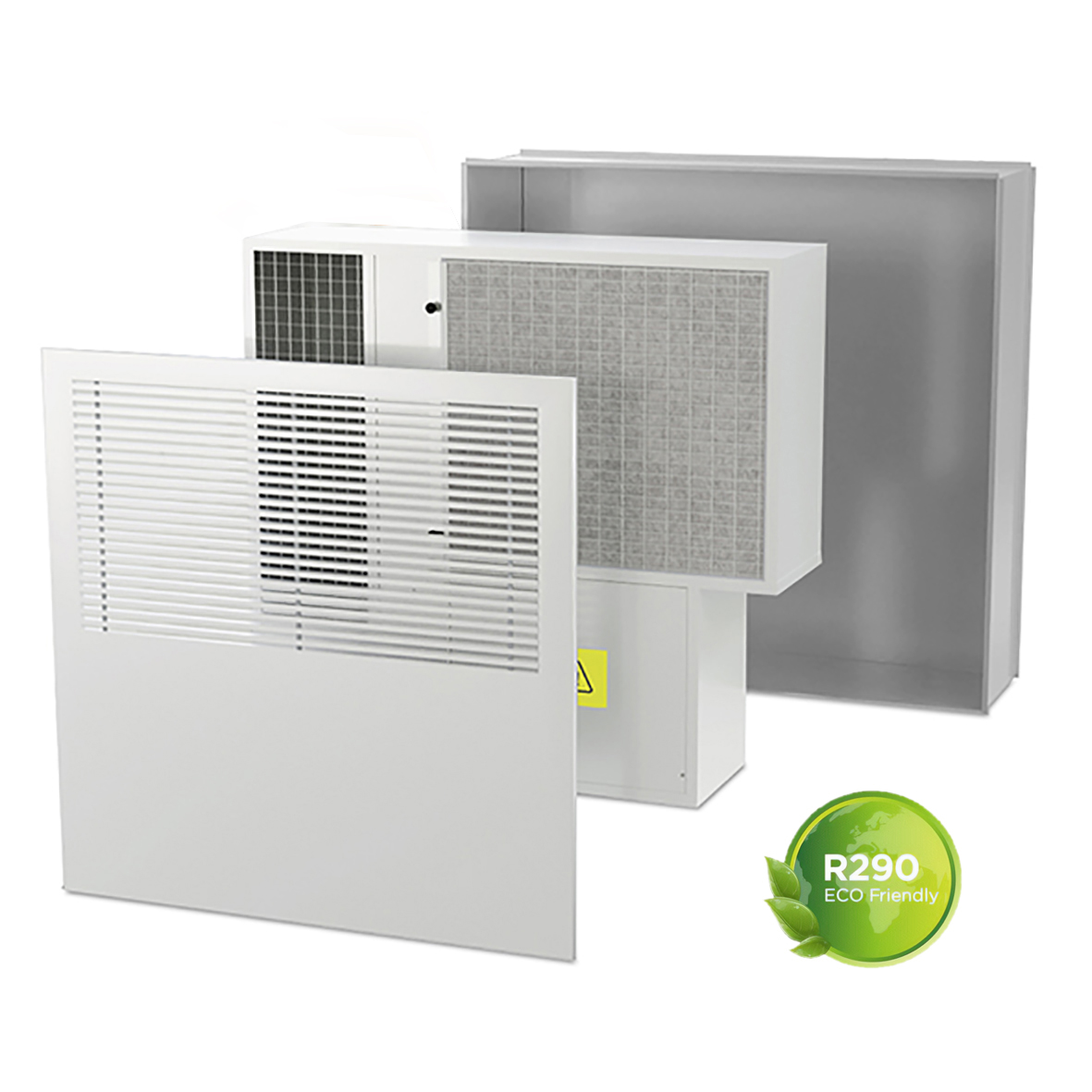

DEHUMIDIFIER RNW 200 PI
Dehumidification unit with summer integration (860 W) for wall installation (built-in or outdoor depending on accessories) consisting of refrigerant circuit, centrifugal fan and pre- and post- treatment coils to be supplied with chilled water (15 °C). Management with RDZ control systems.
| File type | Description | Language | File |
|---|---|---|---|
| Electrical Diagram | RNW 200 P - RNW 200 PI | IT - EN |
| Code | Model | Air flow rate | Water flow rate (15 °C) | Condensate (26 °C RH 65%) | Max. electrical power | Size lxhxd | Weight | Pack. |
|---|---|---|---|---|---|---|---|---|
| 70RNWPI200 | RNW 200 PI | 200 m³/h | 240 l/h | 24 l/24h | 290 W | 721x573x202 mm | 28 Kg | 1 pc |
| 7040015 | Frame | 760x616x206 mm | 12 Kg | 1 pc | ||||
| 7040025 | Front cover | 790x630x18 mm | 6 Kg | 1 pc | ||||
| 7040031 | Cabinet | 796x649x229 mm | 15 Kg | 1 pc |
