KIT VJ 0-10

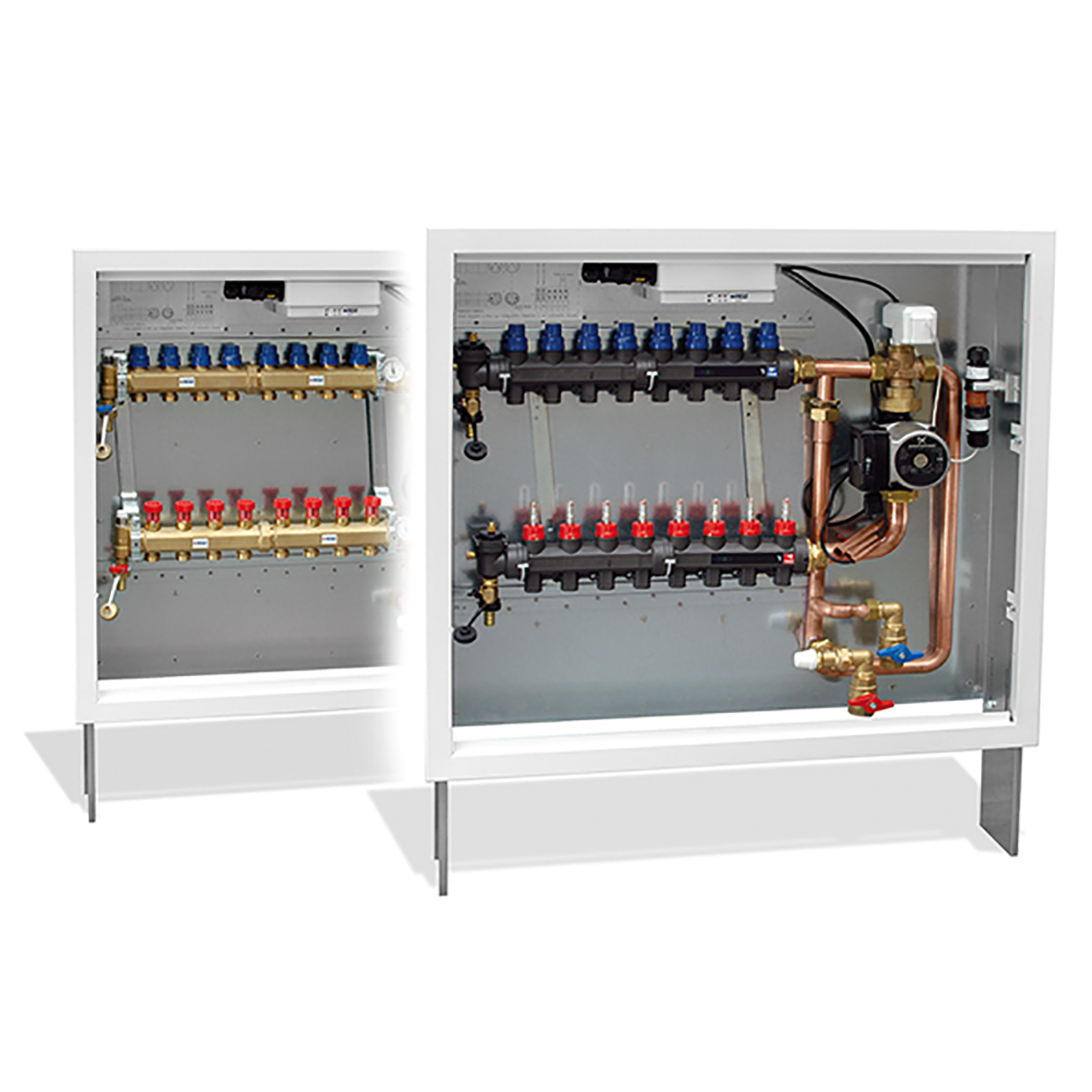

Kit for distribution and regulation mod. VJ 0-10, with double temperature, for underfloor systems and high-temperature systems. It includes: a metal cabinet with adjustable feet, brackets, a protective cover, a white door with adjustable frame and lockset, a three-way mixing valve, an analogue motor 0-10, an electronic circulation pump with variable speed, a micrometric lockshield valve, a one-way valve, shut-off valves, thermometers, a balancing lockshield valve, vent valves and fill/drain valves, a safety electric thermostat, a connector to the electrical installation and a wired system. It can be combined with RDZ WI controllers. It is possible to use either CONTROL brass manifold or TOP COMPOSIT plastic manifold. Optional acessories: - High-temperature outlets, 2 or 3 outlets - Air trap - Anti-condensation insulation Note: Control unit is not supplied as standard.
Read moreX
File type | Description | Language | File |
---|---|---|---|
Technical Manual | Kit VJ | IT - EN |
Code | Outlets | Ø | Size wxhxd | Package |
---|---|---|---|---|
3VO03N0QN2 | 3+3 | 12 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VO04N0QN2 | 4+4 | 12 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VO05N0QN2 | 5+5 | 12 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VO06N0QN2 | 6+6 | 12 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VO07N0QN2 | 7+7 | 12 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VO08N0QN2 | 8+8 | 12 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VO09N0QN2 | 9+9 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO10N0QN2 | 10+10 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO11N0QN2 | 11+11 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO12N0QN2 | 12+12 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO04N0QN6 | 4+4 | 16 mm | 65x83÷89x14.5 cm | 1 Kg |
3VO03N0QN6 | 3+3 | 16 mm | 65x83÷89x14.5 cm | 1 Kg |
3VO05N0QN6 | 5+5 | 16 mm | 65x83÷89x14.5 cm | 1 Kg |
3VO06N0QN6 | 6+6 | 16 mm | 80x83÷89x14.5 cm | 1 Kg |
3VO07N0QN6 | 7+7 | 16 mm | 80x83÷89x14.5 cm | 1 Kg |
3VO08N0QN6 | 8+8 | 16 mm | 80x83÷89x14.5 cm | 1 Kg |
3VO09N0QN6 | 9+9 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VO10N0QN6 | 10+10 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VO11N0QN6 | 11+11 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VO12N0QN6 | 12+12 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VO03N0QN7 | 3+3 | 17 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VO04N0QN7 | 4+4 | 17 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VO05N0QN7 | 5+5 | 17 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VO06N0QN7 | 6+6 | 17 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VO07N0QN7 | 7+7 | 17 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VO08N0QN7 | 8+8 | 17 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VO09N0QN7 | 9+9 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO10N0QN7 | 10+10 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO11N0QN7 | 11+11 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VO12N0QN7 | 12+12 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP03N0QN2 | 3+3 | 12 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VP04N0QN2 | 4+4 | 12 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VP05N0QN2 | 5+5 | 12 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VP06N0QN2 | 6+6 | 12 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VP07N0QN2 | 7+7 | 12 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VP08N0QN2 | 8+8 | 12 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VP09N0QN2 | 9+9 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP10N0QN2 | 10+10 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP11N0QN2 | 11+11 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP12N0QN2 | 12+12 | 12 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP03N0QN6 | 3+3 | 16 mm | 65x83÷89x14.5 cm | 1 Kg |
3VP04N0QN6 | 4+4 | 16 mm | 65x83÷89x14.5 cm | 1 Kg |
3VP05N0QN6 | 5+5 | 16 mm | 65x83÷89x14.5 cm | 1 Kg |
3VP06N0QN6 | 6+6 | 16 mm | 80x83÷89x14.5 cm | 1 Kg |
3VP07N0QN6 | 7+7 | 16 mm | 80x83÷89x14.5 cm | 1 Kg |
3VP08N0QN6 | 8+8 | 16 mm | 80x83÷89x14.5 cm | 1 Kg |
3VP09N0QN6 | 9+9 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VP10N0QN6 | 10+10 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VP11N0QN6 | 11+11 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VP12N0QN6 | 12+12 | 16 mm | 100x83÷89x14.5 cm | 1 Kg |
3VP03N0QN7 | 3+3 | 17 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VP04N0QN7 | 4+4 | 17 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VP05N0QN7 | 5+5 | 17 mm | 65x83÷89x14.5 cm | 1,00000 pz |
3VP06N0QN7 | 6+6 | 17 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VP07N0QN7 | 7+7 | 17 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VP08N0QN7 | 8+8 | 17 mm | 80x83÷89x14.5 cm | 1,00000 pz |
3VP09N0QN7 | 9+9 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP10N0QN7 | 10+10 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP11N0QN7 | 11+11 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
3VP12N0QN7 | 12+12 | 17 mm | 100x83÷89x14.5 cm | 1,00000 pz |
