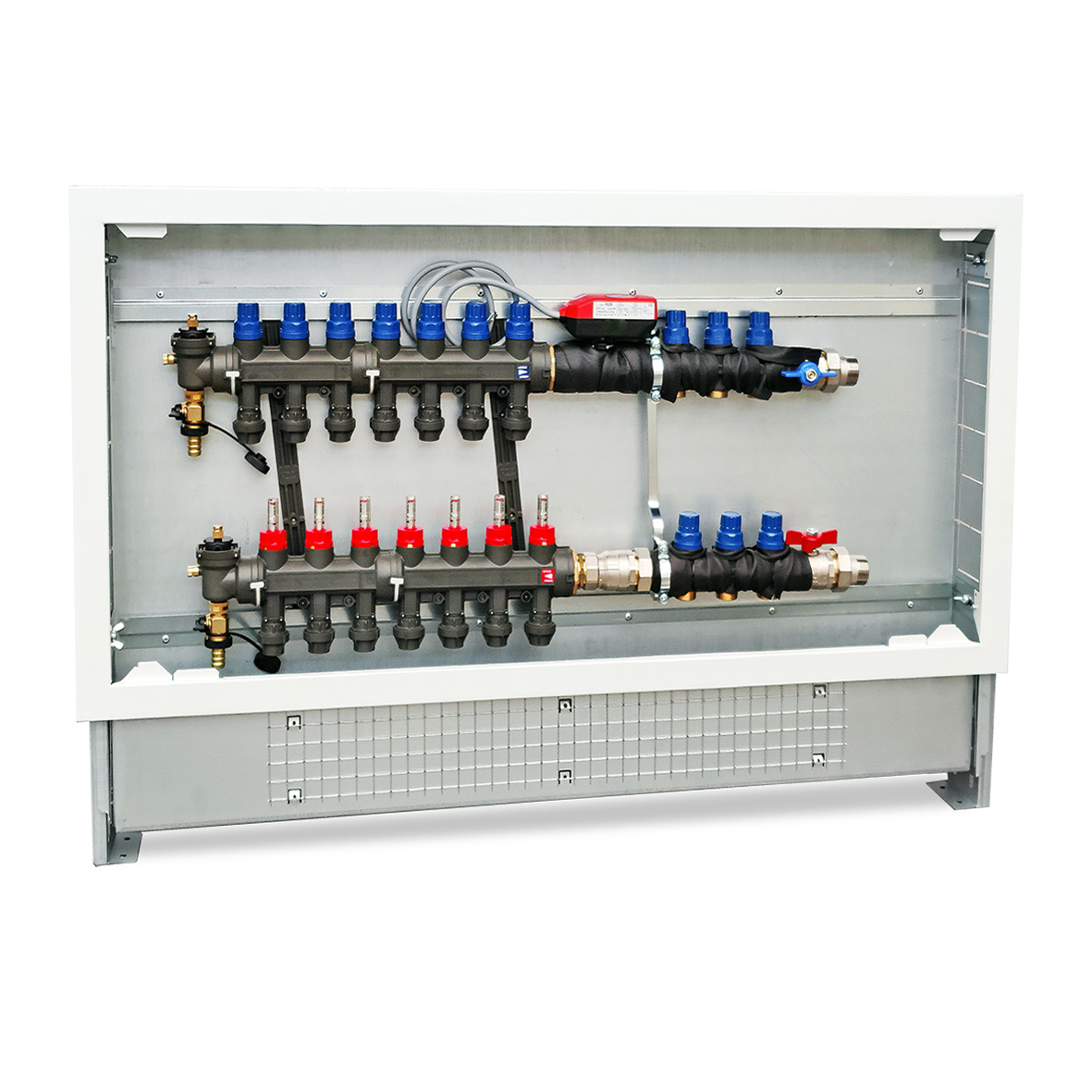

VS3 PRE-ASSEMBLED DUAL-TEMPERATURE MANIFOLD Without fancoil outlets
The pre-assembled dual-temperature manifold vs3 is a switching and control kit for controlling and distributing the heat transfer fluid in two-pipe heating and cooling systems.
Depending on the season and the respective operating regime, the 3-way valve allows the fluid to be directed to the radiant panel heating system. The kit consists of a galvanised steel cabinet with adjustable feet, brackets and protective plaster cover, complete with frame and finishing door.
Code | Outlets | Pipe Ø | Cabinet width | Type of manifold | Packaging |
---|---|---|---|---|---|
3F00F0TA1705 | 5+5 | 17 mm | 850 mm | Top Composit | 1 pc |
3F00F0TA1706 | 6+6 | 17 mm | 850 mm | Top Composit | 1 pc |
3F00F0TA1707 | 7+7 | 17 mm | 850 mm | Top Composit | 1 pc |
3F00F0TA1708 | 8+8 | 17 mm | 850 mm | Top Composit | 1 pc |
3F00F0TA1709 | 9+9 | 17 mm | 1000 mm | Top Composit | 1 pc |
3F00F0TA1710 | 10+10 | 17 mm | 1000 mm | Top Composit | 1 pc |
3F00F0TA1711 | 11+11 | 17 mm | 1000 mm | Top Composit | 1 pc |
3F00F0TA1712 | 12+12 | 17 mm | 1200 mm | Top Composit | 1 pc |
3F00F0TA1713 | 13+13 | 17 mm | 1200 mm | Top Composit | 1 pc |
